ASTM/AASHTO Proctor Compaction Rammer and Mould



Description

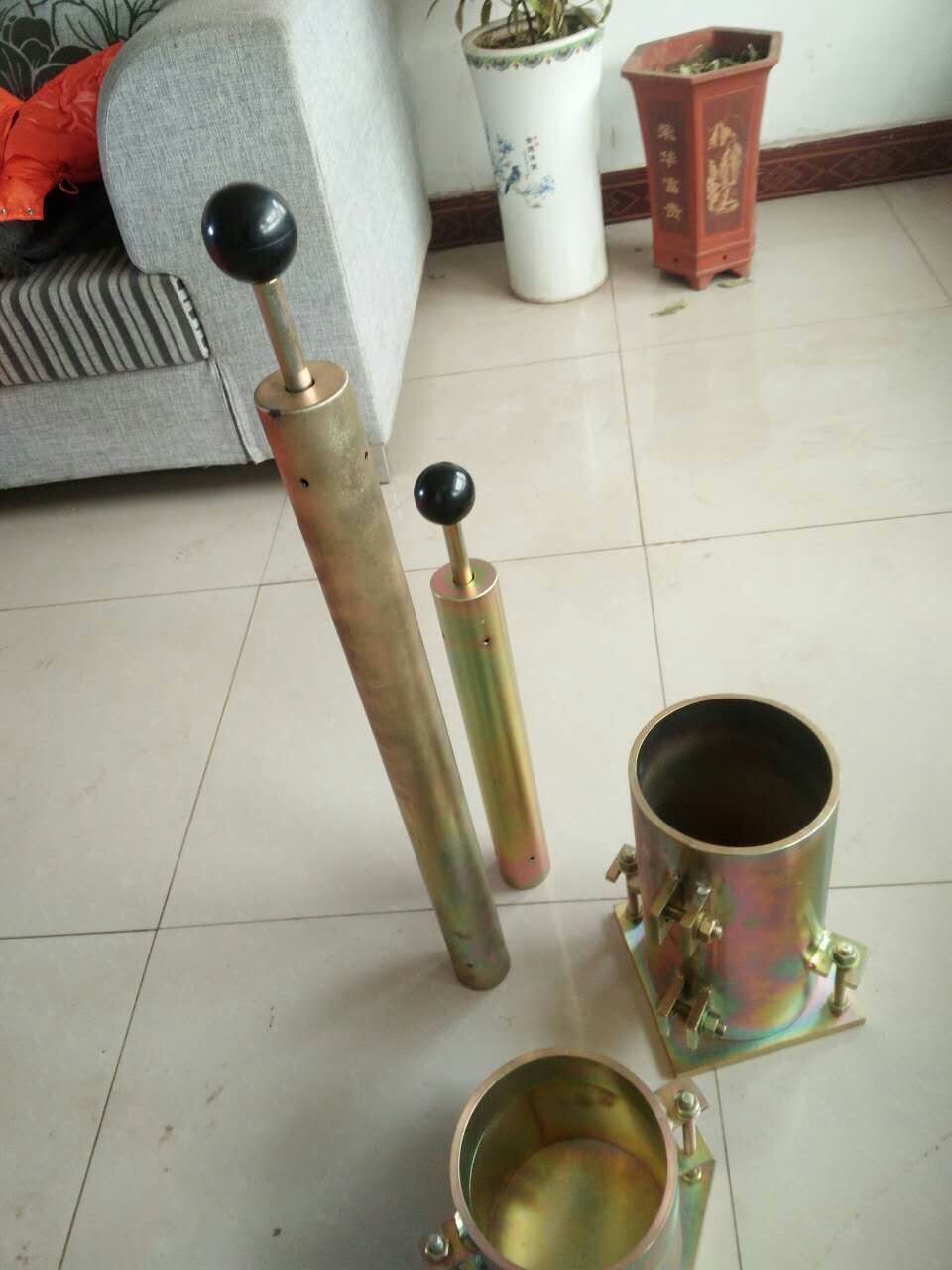

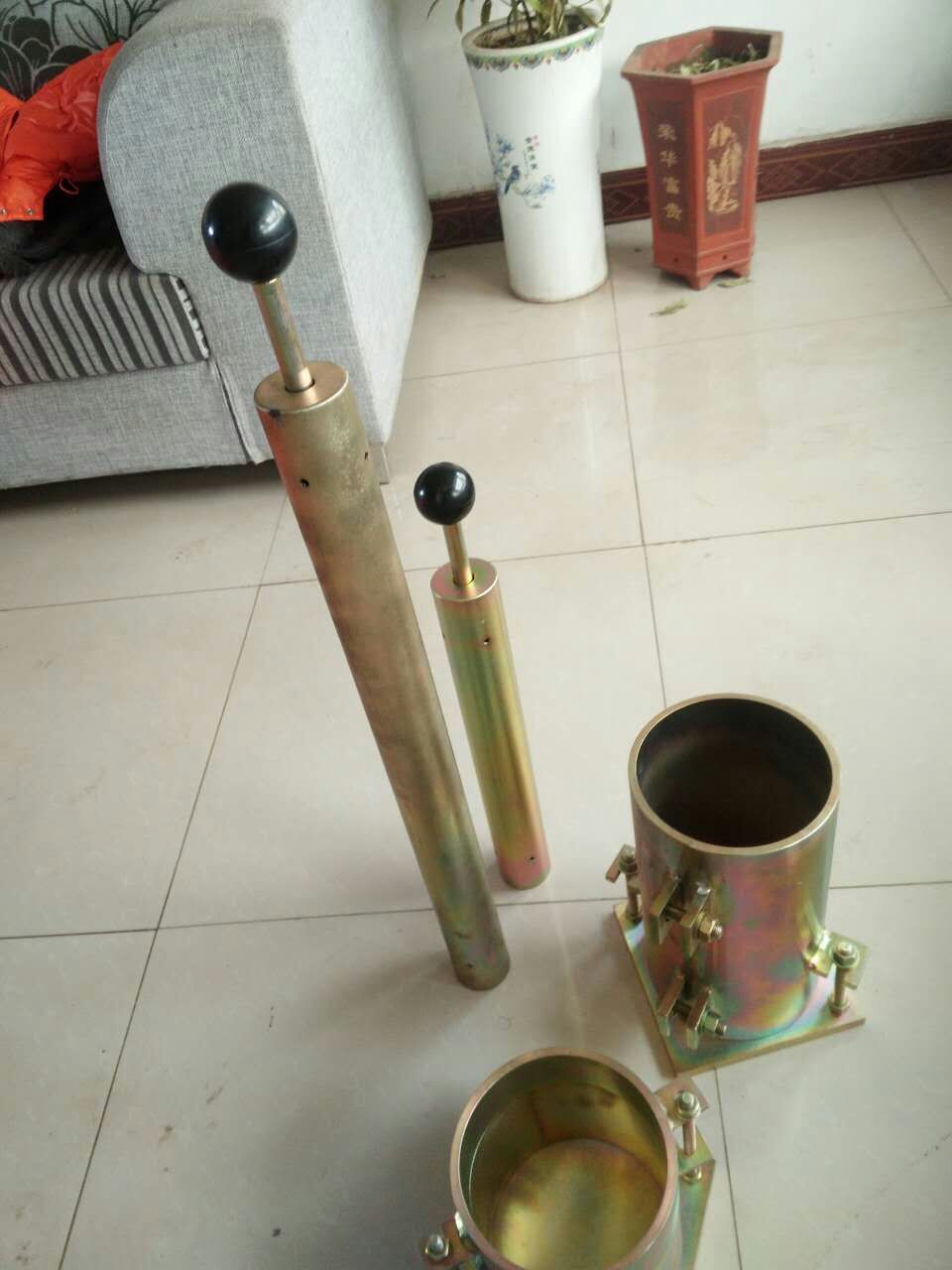

The proctor compaction apparatus is used for determining the relationship between the moisture content and density of compacted soil. The mould includes collar, mould body and base plate. The rammer construction includes a guide sleeve with vent holes, it’s kind of very common soil testing equipment.

 Technical specifications

Moulds

Type Standard Cap. cm3 Int. dia.
mm		 Body height mm Weight Approx. kg
Standard ASTM
AASHTO		 944 101.6 116.4 7
Modified ASTM
AASHTO		 2124 152.4 116.4 9
Standard ASTM
AASHTO		 944 101.6 116.4 7.5
Modified ASTM
AASHTO		 2124 152.4 116.4 9.5

Rammers

Type Standard Rammer dia.
mm		 Free fall
height mm		 Rammer
weight kg		 Weight
kg
Standard ASTM
AASHTO		 50.8 305 2.49 3
Modified ASTM
AASHTO		 50.8 457.2 4.54 5.3
