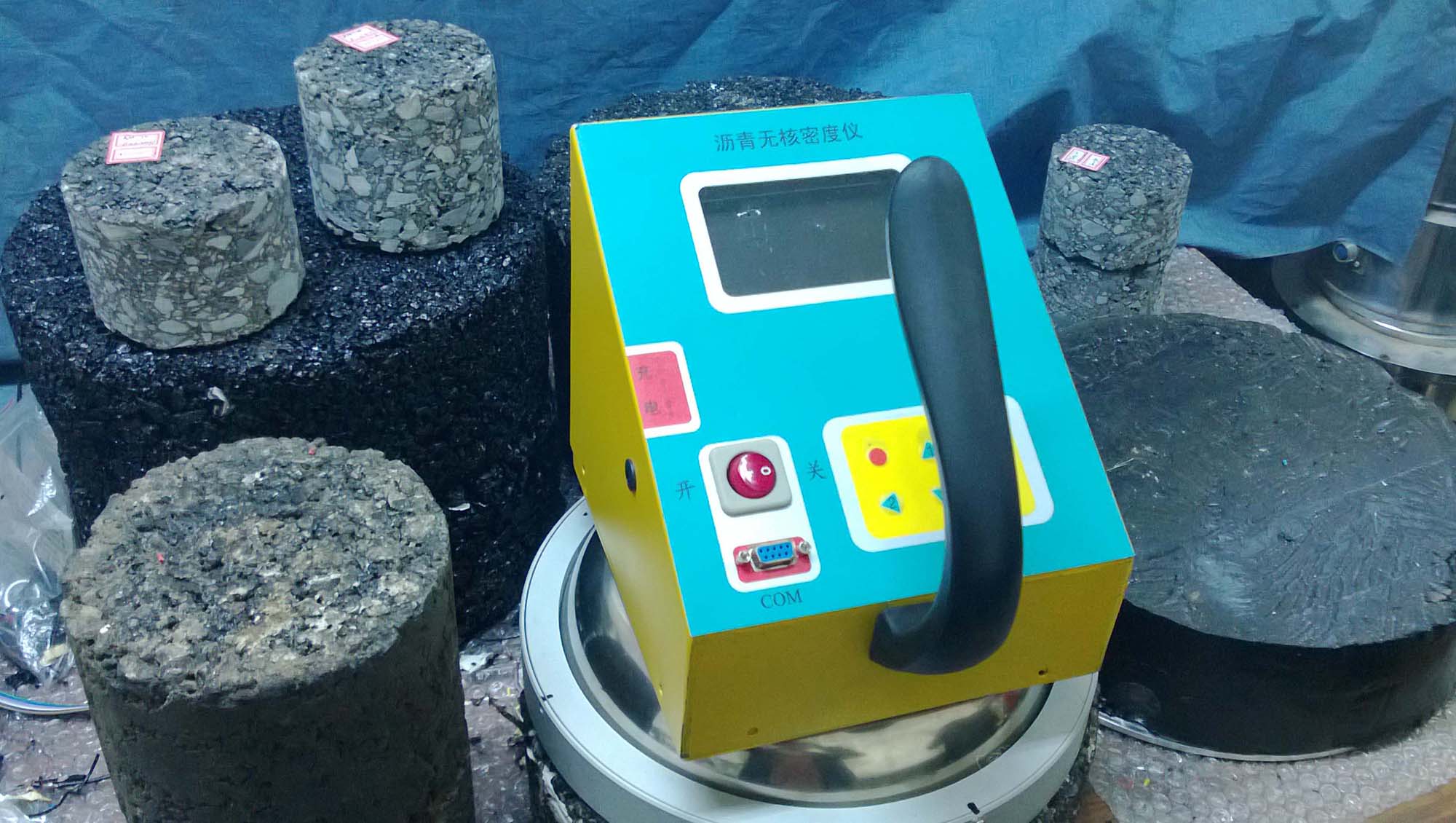

Asphalt Non-nuclear density gauge



Model: ADG-310

Features

Fast, accurate for hot-mixing asphalt pavement density measurement, can obtain results within 3s

Safe, no any safety problem in storage, operation, transportation

Light in weight, easy to carry with, easy in operation

English operation menu



Technical specifications

Term Specifications Term Specifications
Test area Φ27mm, fine and coarse material Detection depth 25mm~ 100mm
Operation temperature -7℃-43℃, surface temperature 175℃, storage temperature – 18℃-66℃ Display measuring term

Density, compactness, avoid ratio, separation variable
Unit Inches or mm, lb/cu-ft or kg/cum
Main machine dimension 270mm×270mm×280mm Display 5.0inch
Power supply built-in large capacity battery Data storage max 10000 test datas
Transducer temperature range 0~350°C Working time > 24hrs
