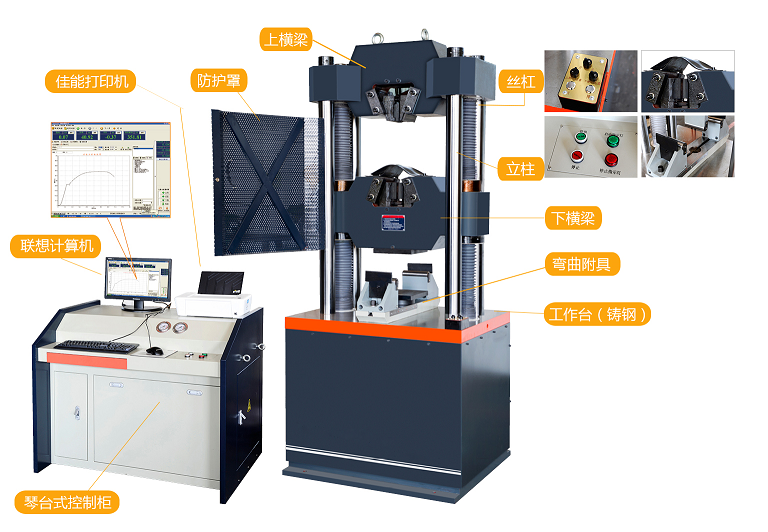

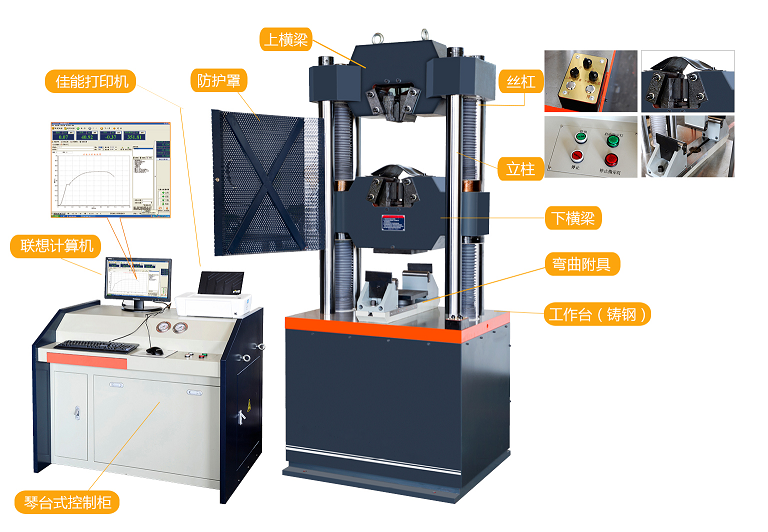

Model: UTM-1200D

Description

This model UTM is powered by hydraulic, it’s mainly used for mechanical testing of metal and nonmetal material under normal temperature condition. It mainly can perform tensile, compression, bending, shear tests. Controlled by servo system to enable automatic control of oil flow, thus to enable precision close-loop control thus to achieve constant load, constant displacement, constant strain tests. Four robust columns to guarantee rigidness of main frame when testing; Powerful application software, test data real time indication on computer screen, different test mode can be setup, different test standards selectable according to different materials, test curve real time generation; complete test parameters presentation in report. Real time test report print output.



Technical specifications

Max nominal test load	1200 kN
Effective test load range	5%~100%F.S
Test load min readout	0.01kn
Test load accuracy	≤±1%
Displacement min readout	0.01mm
Displacement accuracy	≤±1%
Strain min readout	0.01mm
Strain accuracy	≤±1%
Tensile test daylight	max 900 mm
Compression test daylight	max 700 mm(not including piston displacement)
Piston stroke	250 mm
Round sample jaw dia.	Φ13-Φ60 mm
Flat sample jaw thickness	0-40 mm
Flat sample max clamping width	120 mm
Plate size	204×204 mm
Bending test supporting points distance	450 mm
Bending support roller width	140 mm
Bending supporting roller diameter	Φ40 mm
Piston max moving velocity	50 mm/min
Clamping way	hydraulic automatic gripping
Main frame size	1210×1000×2850mm(when not work)
Controller size	1000×700×1400 mm
