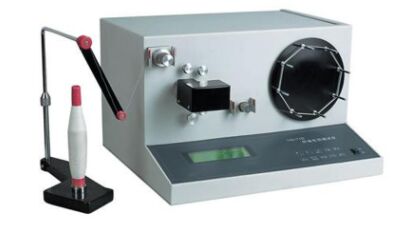

Yarn Hairiness Tester Yarn test instrument



Model: FZ-171D

This instrument is used to test the hairiness of yarn, with functions of automatic measurement and statistics of the length, number and distribution of the tube yarn, the bobbin and the sizing hairiness.

Standard
FZ/T01089

Technical specifications
1. One batch measurement of hairiness length: 1, 1, 2, 3, 4, 5, 6, 7, 8mm 2, 3, 4, 5, 6, 7, 8mm
2. Hairiness length setting accuracy: ≤0.1mm;
3. Hairiness resolution: 0.5mm;
4. Test speed: 30m/min±5%;
5. Continuous test times: 1-99 times, freely set
6. Data processing: average hairiness index, total unevenness, mean square error, unevenness of the tube, and histogram;
7. Power supply: AC220V, 50HZ;
8. Power: 350W;
9. Dimensions: 500 × 460 × 300mm;
10. Net weight: 30kg.
