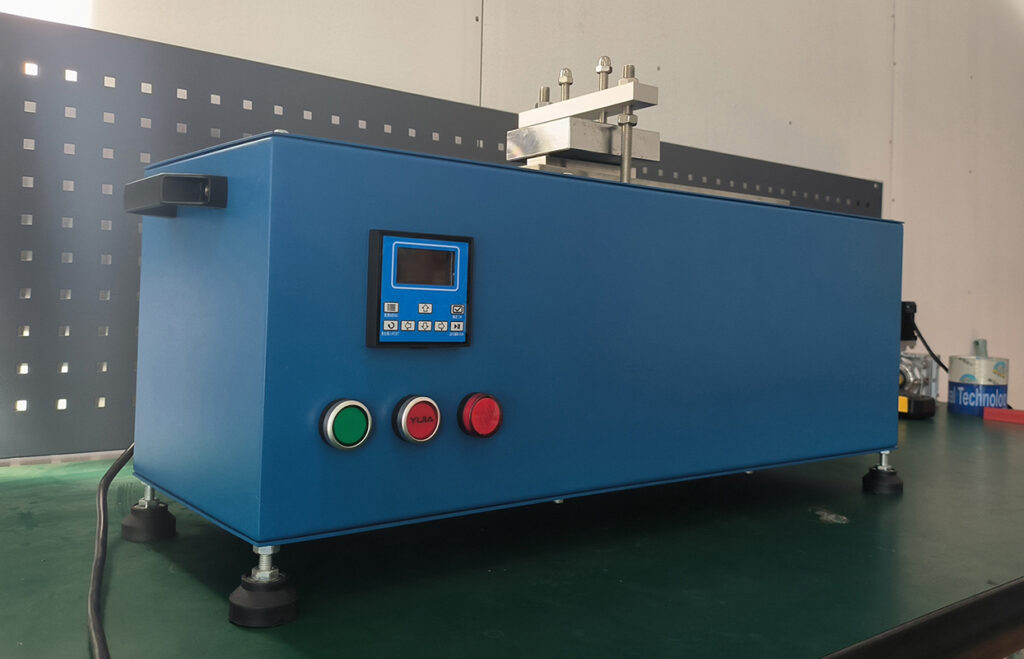

Waterproofings granules adhesion tester EN 12039 ASTM D4977

Standards: EN 12039, ASTM D4977

Specifications

ModelJC-NF01AJC-NF01B
Brush component weight      21.5±0.5N2268 ± 7g
Brush amplitude          200±20mm152±6mm
Brush component reciprocating speed 1-1.2s per cycle1.2S~1.4s per cycle
Power supply voltage    220V 50HzPower supply voltage: 220V 50Hz
Dimensions       760 × 230 ×400mm760 × 230 ×400mm
Net weight28kg28kg

Test Brush

Made of a suitable material with 22 holes drilled on it, as shown in Figure A.1, with a diameter of 4mm. Each hole has 22 nylon 66 threads with a diameter of 0.80mm and a protrusion of (16 ± 2) mm.

The effective area of the replaceable brush does not exceed 80mm × 25mm when loaded, and the effective brushing area B, as shown in Figure A.2, is [(A+80) × 25] mm2.
