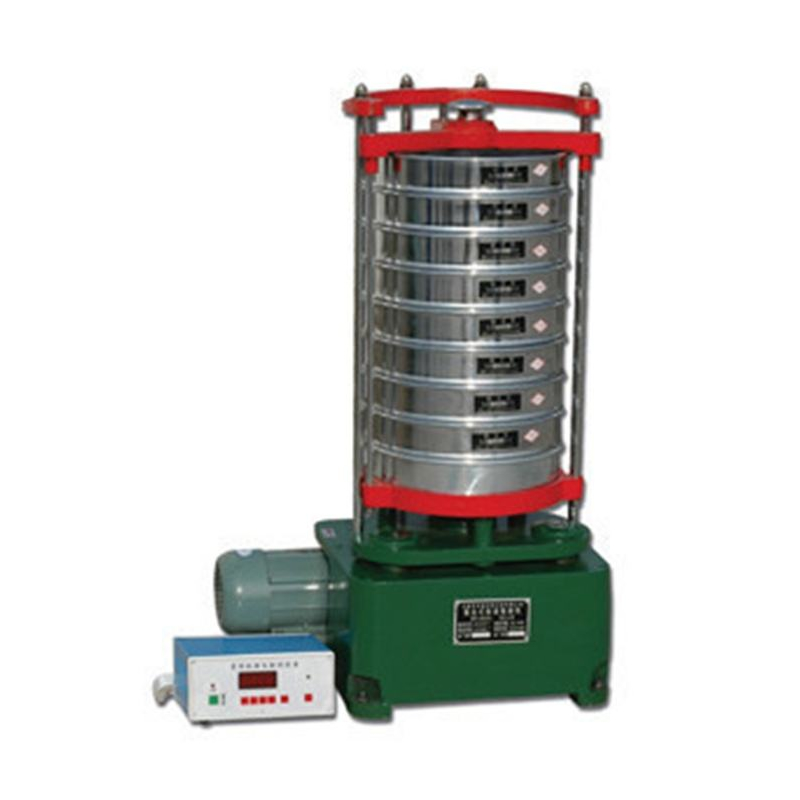

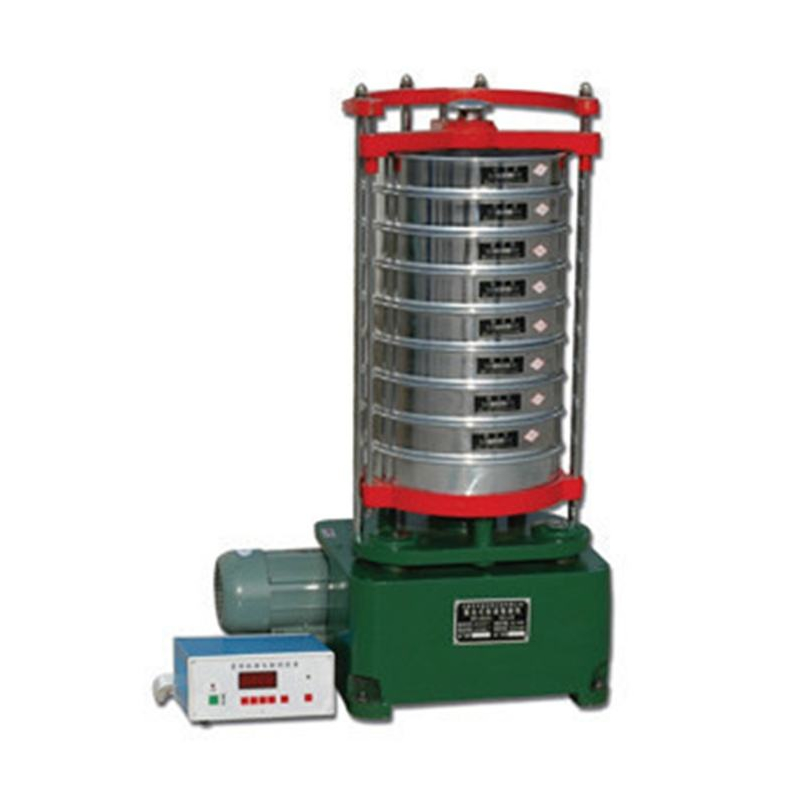

Vibratory sieve shaker

Model: ZS-1A

This vibratory sieve shaker is suitable for screening & analysis of various kinds of particulate matter in laboratories. The applicable sieve size is 200mm.

Features

This shaker machine is constructed of base, cover, rotation structure, shock mechanism, clamping mechanism, features compact size, light in weight, advanced structure, good sieving performance, easy sieve installation.



Specifications

Applicable sieve dia. 200mm
Stack height 400mm
Radius of gyration 12.5mm
Shake frequency 221times/min
Vibration frequency 147times/min
Up and down vibration stroke 5mm
Timing range 0-60min
Motor power 0.37kw
Motor working voltage 380V
Motor rotation 2800rpm
