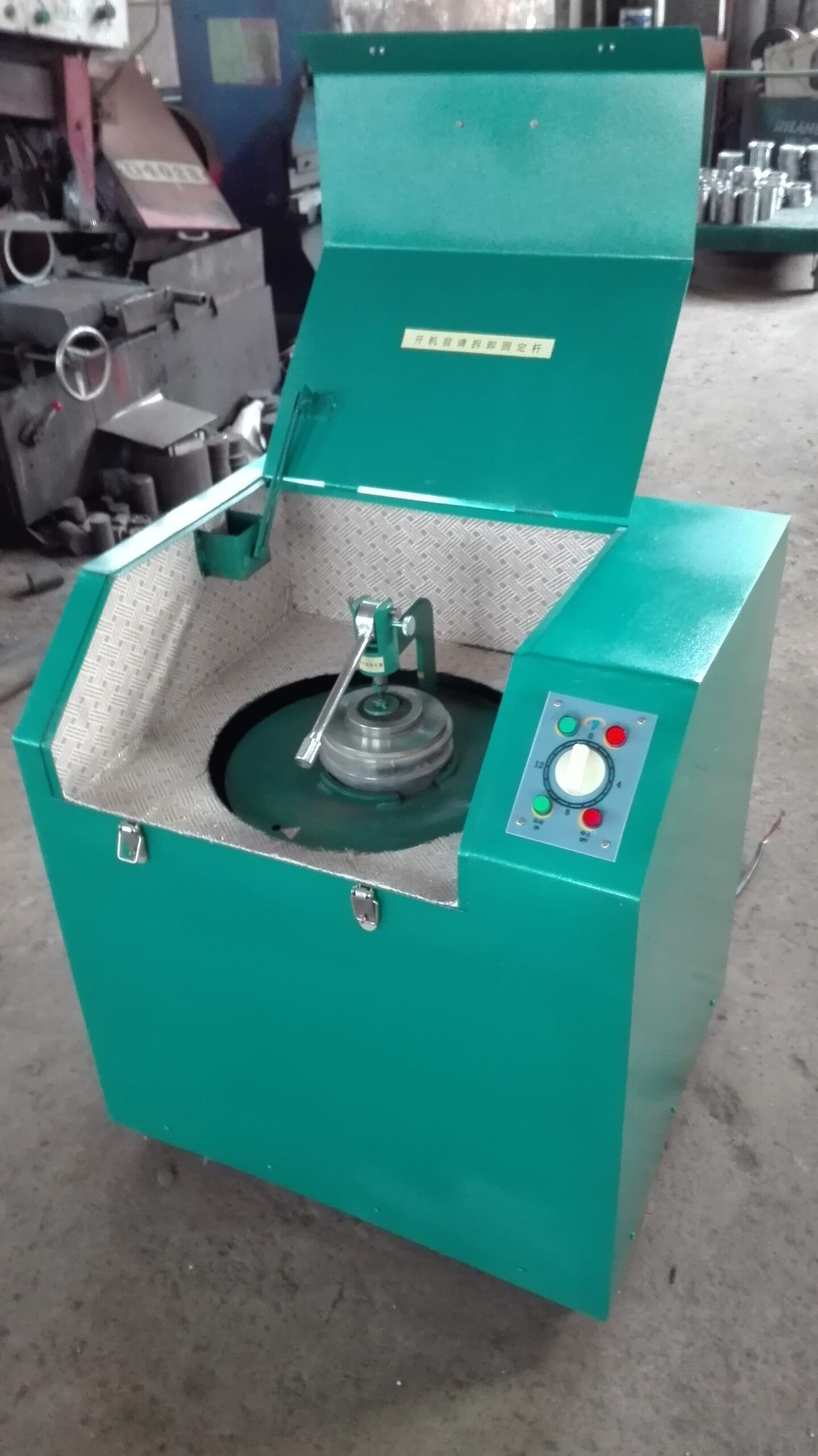

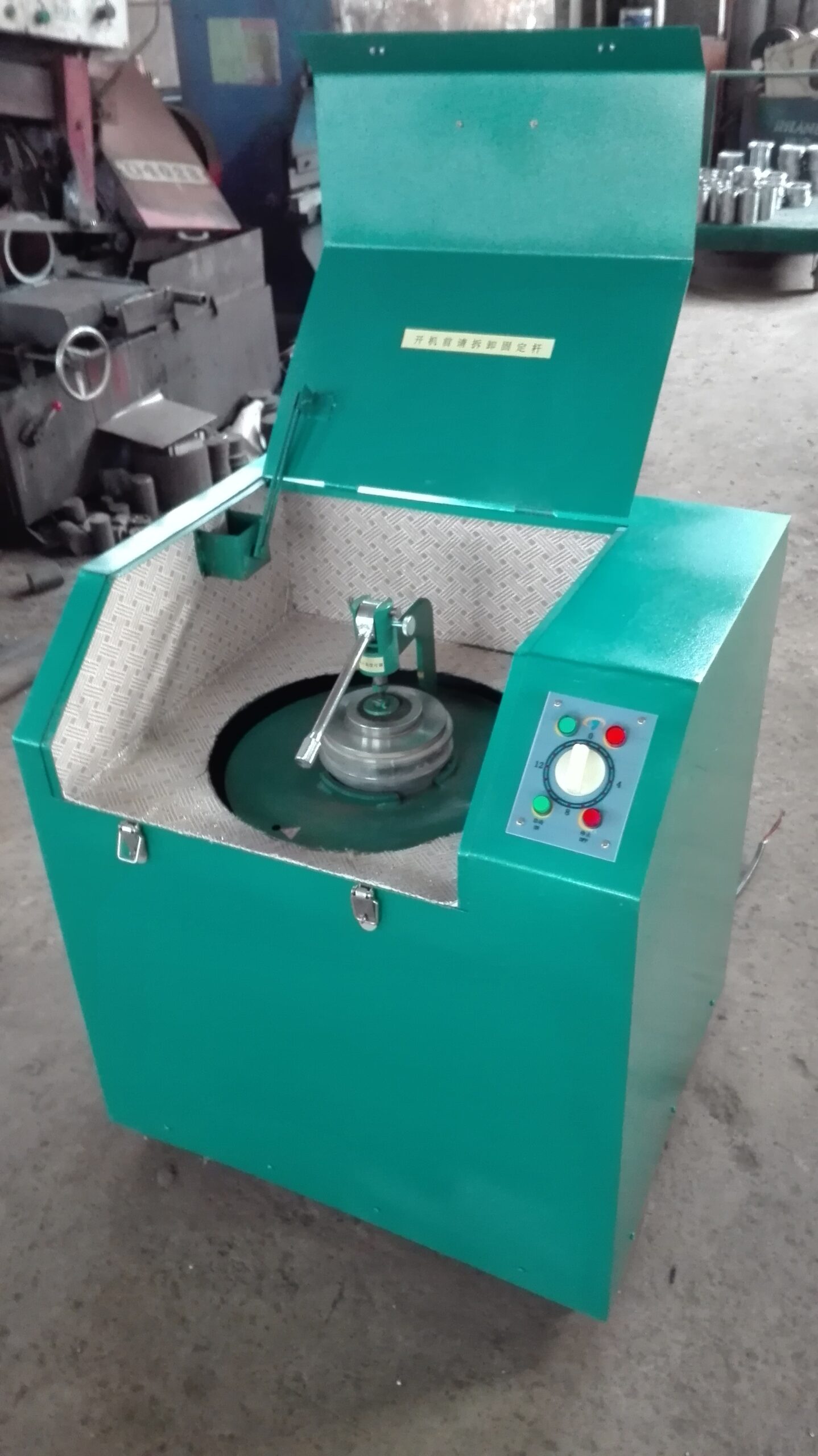

Vibratory mill Sample preparation instrument

This vibratory mill is a grouped equipment for X ray Fluorescence Spectrometer. Features easy operation, high efficiency, less noise, no leakage, unique suspension structure can increase the horizontal direction force to improve the grinding efficiency, and reduce the vertical force to reduce machine noise.

Technical specifications

Model  ZDM-1A  ZDM-1B  ZDM-1T  ZDM-1V
Features 1 speed 1 container 1 speed 1 container 2 speed 1 container Variable speed 1 container
Feeding size ≤10mm3
Output size ≤80um（or 200mesh）
Container volume 100 cm3
Feeding capacity 10~ 30cm3
Power supply AC380V±10%/50Hz, 3ph
Rotation speed (rpm) 1400 960 910,1400

2 speed

 750-1550
rotation speed adjustable
Rated power 1.5kW 1.5kW 0.85/1.1kW 1.5kW
Overall size 650*600*960mm
Net weight 180kg – 240kg
Container clamping way Rapid clamping
