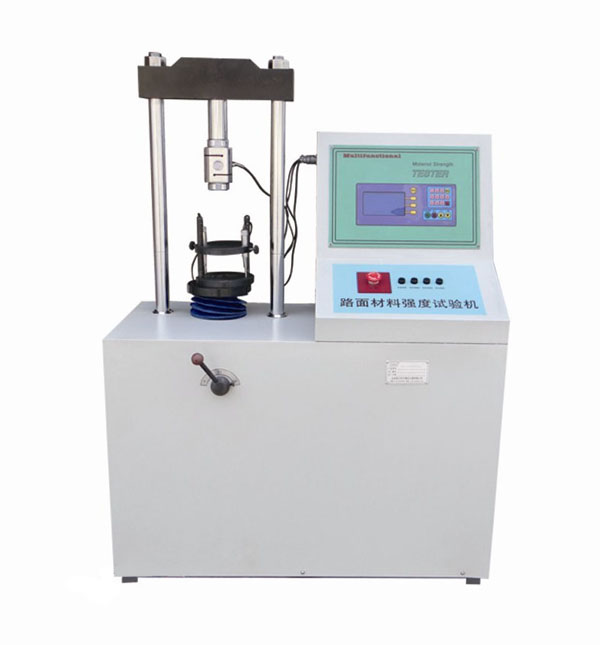

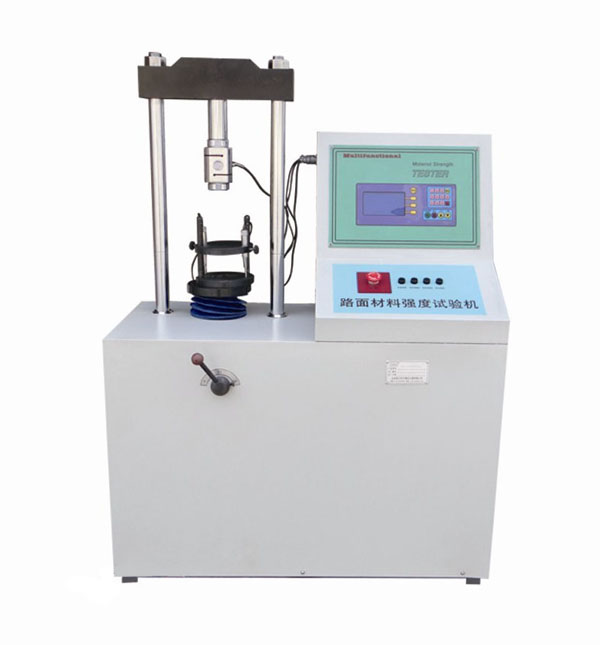

Universal tester for compression flexural CBR Marshall test



Model: LQ-1S

Description

This tester is kind of a multifunctional testing equipment for civil engineering laboratory, it can be used to perform the compression test,  flexural test, CBR test, Marshall stability test.

Features

Intelligent measuring & control technology, sensor force measuring, digital display

Overload & limit protection

Easy operation, stable performance

Can storage 15groups test records

Can do UCS, CBR, Marshall stability, Compression, flexural

Has fast & low speed test modes

Micro printer can be equipped

Technical Specifications

Max. load 0-100KN,0-30KN
Load resolution 0.01KN
Accuracy ±1%
Max. Vertical stroke 200mm
Deformation measuring range 0~15mm
Elevation speed High 50mm/min, low: 1mm/min
Manual elevation speed 1/6 mm per cycle
Rating of machine JW7134 550W, 380V, 1400RPM
Overall dimension 1200x700x1450mm
Net weight 120kg
