Civil engineering & Material Testing equipments

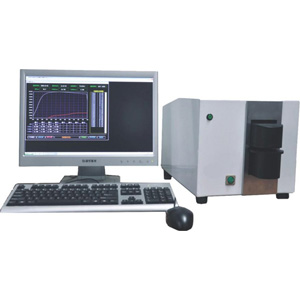

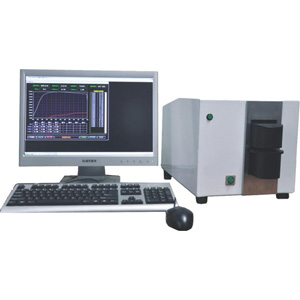

Ultraviolet Radiation Penetration Protection Test System AATCC 183

Model: FZ-183

Standards: GB/T 18830, AATCC 183, AS/NZS 4399, BS 7914, PREN13758

This tester is used to determine the ultraviolet radiation transmittance or blocking of textiles fabrics, it can directly test the textiles fabric ultraviolet radiation protective factor UPV.



Features

  • HERARUS lamp, built in Integrating sphere spectrophotometer, wavelength automatic scan, wide measuring range, high test accuracy
  • Ultravilolet optical sensor, can test Fluorescent sample
  • Fully computer control, automatic data processing, multi diagraph, report statistics, analysis, storage, output.



Technical specifications

measuring range: through rate 0-100%±0.01%, UPF:0-100
Wavelength range 280-400nm±0.5nm
Wavelength repeatability 0.25nm
Data interval 1nm-5nm adjustable
Slit width <=5nm
Optical system 0/d
Sample optical beam dia. 10mm
Power supply AC 220V, 50hz, 100w
Overall dimension 310*500*300mm
Net weight 20kg
