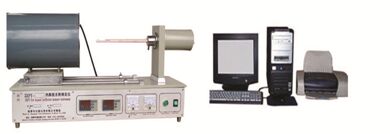

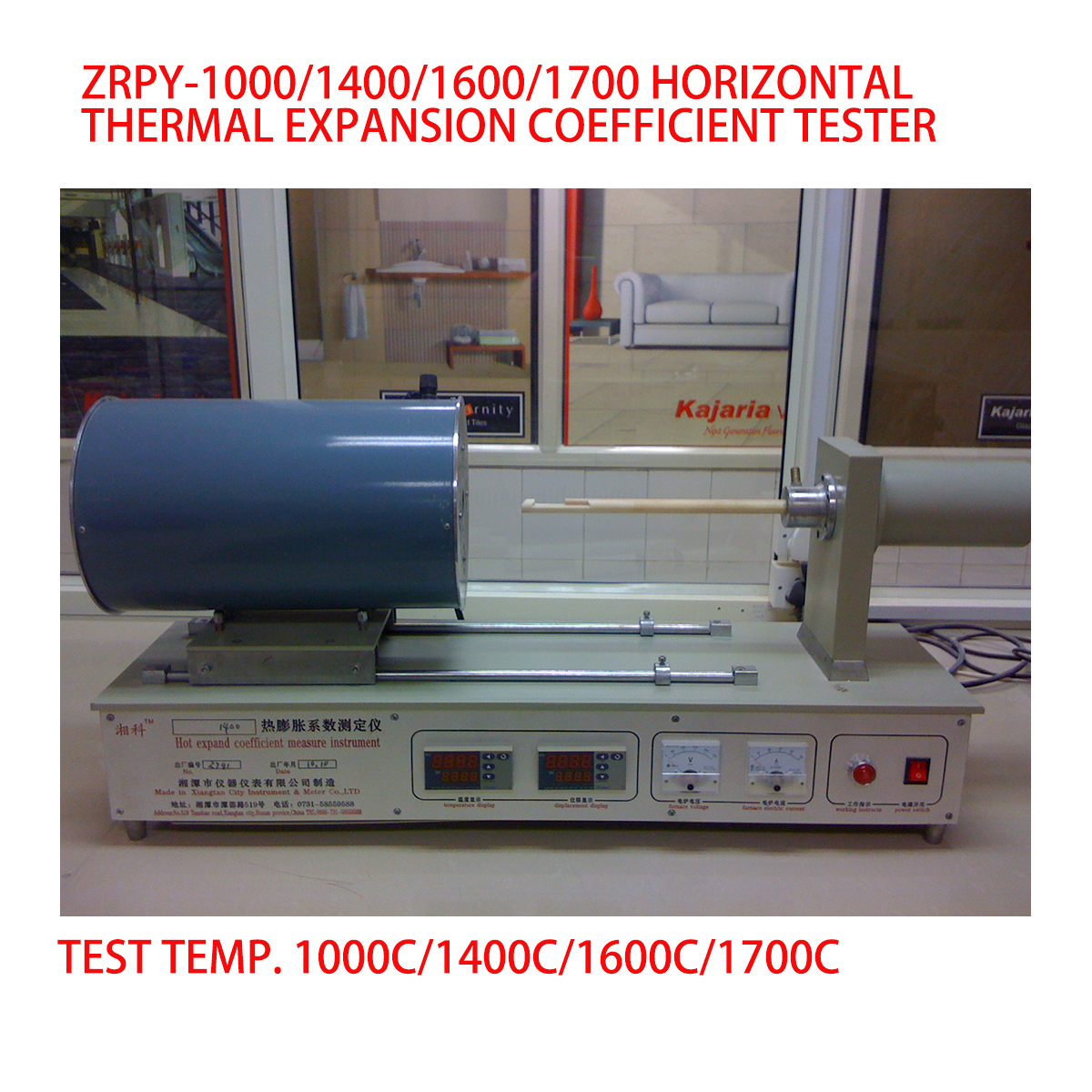

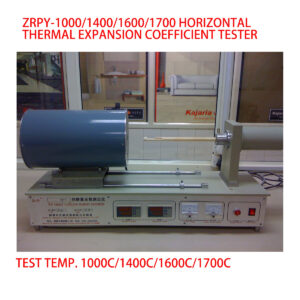

Thermal expansion coefficient testing equipment

Standards: GB/T3810.8-2016 ,ISO 10545.8-1995

Introduction

This equipment is specially used to determine the expansion and shrinkage characteristics of metal and non-metal materials under high temperature conditions, the typical materials including ceramic, glaze material, fire-resistance material. It meets the standards GB/T3810.8-2016 ,ISO 10545.8-1995. Equipped with PC software for intelligent test and data management, automatic temperature control, test data automatic record, storage, print, output temperature-expansion diagram,

Technical specifications

Model ZRPY-1000 ZRPY-1400 ZRPY-1600 ZRPY-1700
Test Temperature RT-1000ºC RT-1400ºC RT-1600ºC RT-1600ºC
Temperature rise rate 0-20 Degree C /min settable, ±1ºC, programmable controlled by MCU
Deformation measuring range ±2.5mmDisplacement sensor
Displacement sensor sensitivity 0.1um, measuring accuracy 0.5um, automatic measuring range calibration
Specimen size Ф6~10×50mm, 10×10×50mm, can be square or cylindrical
Power supply AC 220V, 50HZ, 2KW
Test holder material quartz
Heating element High temperature resistance wire
Automatic calculation of offset coefficient, also can be corrected by human



Standards Configurations

  • 1) ZRPY-1000 testing machine 1 set,
  • 2) English test software 1 set,
  • 3) Quartz sample 1 Pcs
  • 4) Computer  1 set
