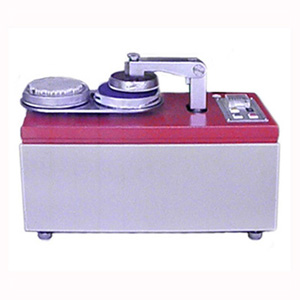

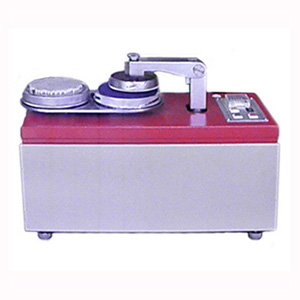

Pilling tester DIN 53863.2



Model: FZ-53863

Standards: GB/T 4802-1997, DIN 53863.2

This pilling tester is suitable to test the pilling performance of Woven textiles fabrics.

Features

Rational structure, stable rotation, no noise, suitable for long time continuous operation

Standard nylon brush with uniform rigidity wire



Technical specifications

Motion Trajectory: 40mm diameter circular

Sample pressure: Chemical fiber fabric 590CN, Combed woolen fabric 780Cn, Carding woolen fabric 490cN

Sample size: 100 square cm, dia. 112.8mm

Test time set: 1-9999 times free set

Sample moving speed: 60 time/min

Power supply: AC 220V, 50Hz

Motor: 60w, 2800rpm

Overall size: L540*W250*H345mm

Net weight: 35kg
