Civil engineering & Material Testing equipments

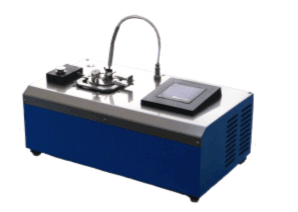

IP 170 ISO 13736 ABEL closed cup flash point tester

Model: SY-170

This tester is used for flash point test of coatings & paintings, petroleum products, meeting the IP 170 and ISO 13736 standards, programmed heating, manual ignition, flash point determination by eye, electric cooling, no need external cooling device. This tester is used for flash point test of coatings & paintings, petroleum products, meeting the IP 170 and ISO 13736 standards, programmed heating, manual ignition, flash point determination by eye, electric cooling, no need external cooling device.

Standards

GB/T21792, ISO1516, GB/T21775/ISO1523, GB6753.5, GB9752, GB/T27847, GB/T27848, GB/T21789-2008, ISO 13736, IP170, IP 304 Part 1 &2, IP491; IP492, BS2000 Part 170; BS3900 Parts A8 & A9, BS 6664 Parts 1& 2; EN ISO 13736

Technical specifications

1. Flash Point Range: -35~105°C

2. Heating Rate: 1.5min<0.5°C (Programmable)

3. Test Accuracy: ±0.5°C

4. Sample Quantity: 50ml

5. Ignition Method: Gas Ignition

6. Cooling Method: Built-In Refrigeration Module (External Water Supply)

7. Working Power: AC220VAC

8, The Whole Machine Power Consumption: 500W8. Dimensions: 400×220×170mm

9. Machine Weight: 7kg
