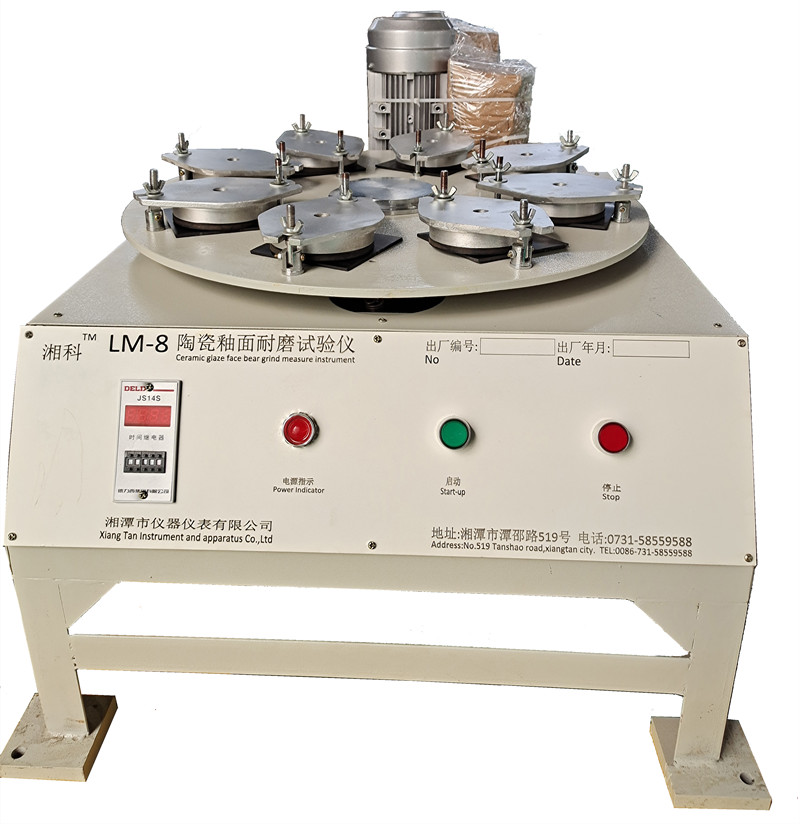

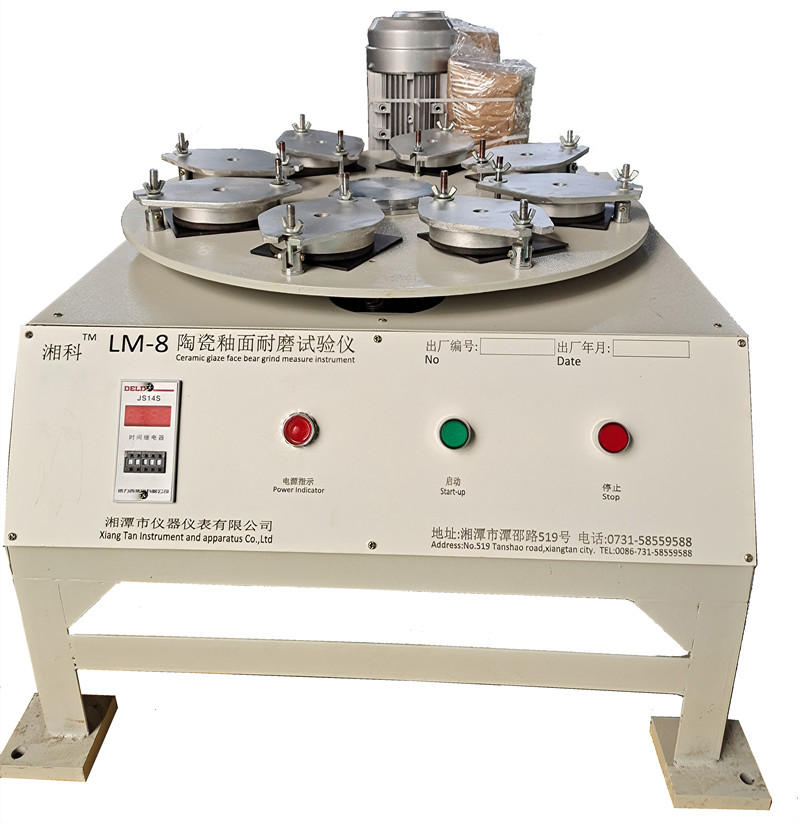

Glazed Ceramic Tile Abrasion Tester ISO/DIS 10545-7



Model: LM-3/8

Standards: ISO/DIS 10545/7-1996, GB/T3810.7-2016



This tester is mainly used for abrasion resistance test of glazed ceramic tile, it’s kind of common construction material testing equipment.

Technical Specifications

  1. Sample size: 100×100mm; can test 3 or 8 samples at a same time
  2. Distance between center and each sample center: 195mm, equal distance between two neighbouringclamps
  3. Supporting plate rated rotation rate: 300±10% rpm
  4. Eccentric distance: e=22.5mm
  5. Clamp: inner diameter Ф83mm, inner height 25.5mm, test area about 54mm2
  6. Motor power: 1.1kw
  7. Power supply: AC 380V±10%, 50HZ±10%
