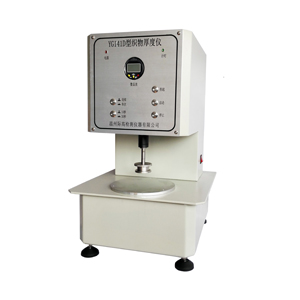

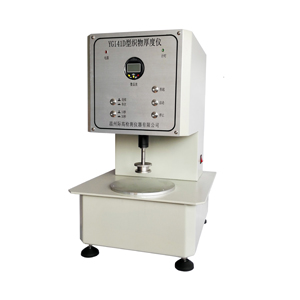

Model: YG-141D

This tester is suitable for thickness measurement of various kinds of fabrics and textiles and other thin materials with uniform thickness.

Features

New machine type, measuring range up to 50mm

Nice appearance, latest design

Technical Specifications

Measuring range: 0-25mm, 0-50mm

Measurement resolution: 0.01mm,0.001mm

Pressuring foot area: 100mm², 2000 mm²,2500 mm², 100000mm²

Foot dia.: 11.28, 50.46, 56.42,112.84mm

Pressure mass: 50cn 2pcs, 100cn 2pcs, 200cn 1pc

Foot lower rate: 1.72mm/s

Test mode: single, continuous, jogging test

Alarm function: test over with alarm music

Measuring rate:

When pressurized time set to 10s, approx. 2.1time/min;

When pressurized time set to 30s, approx. 1.2time/min

Working power supply: ac 220v/50hz

Overall dimension: l600*w400*h450mm

Equipment N.W: 30kg
