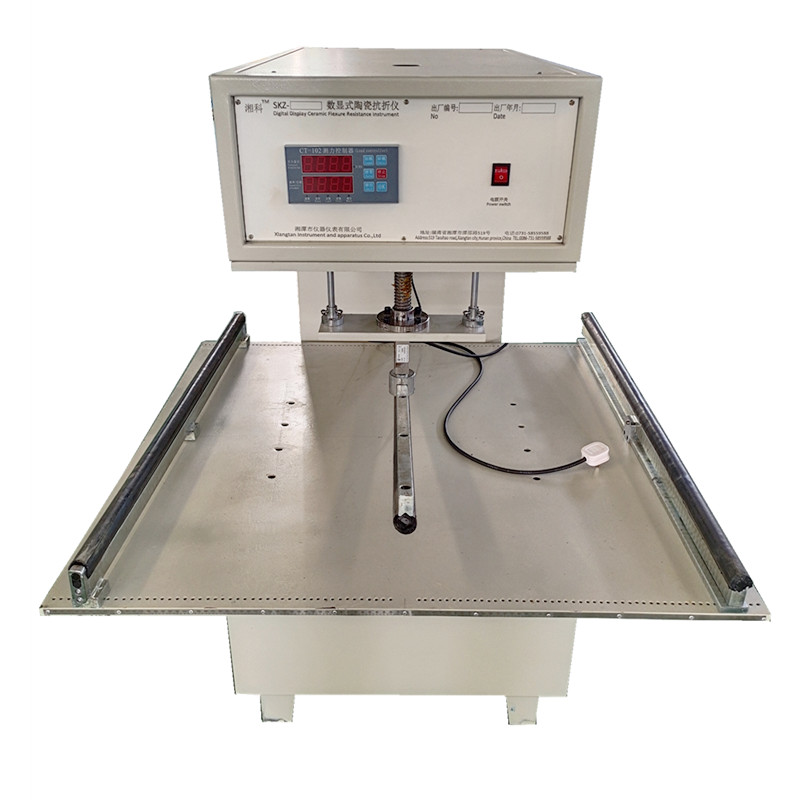

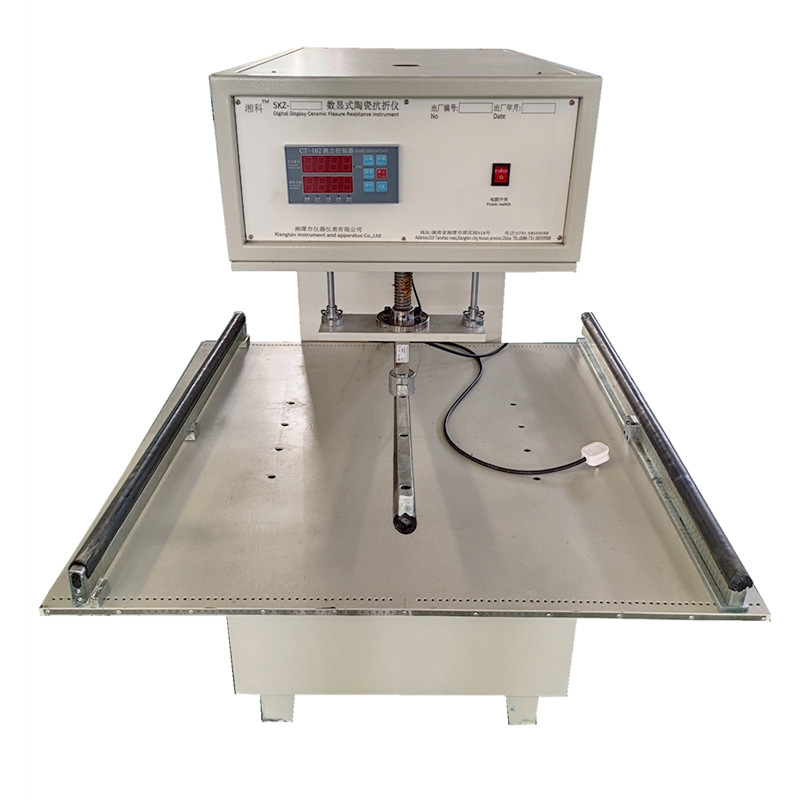

Model: SKZ-10000

Test standards: GB/T3810.4-2016, ISO 10545-4-2014

This tester is used to test the broken strength and rupture modulus of ceramic tiles, ceramic materials, fireproof materials etc.

Technical specifications

Max loading: 10000 N

Samplesize:60×60~600×600mm, 60×60~800×800mm, 60×60~1000×1000 mm adjustable, optional

Loading speed: 5~700(N/S) adjustable

Testing accuracy: 0.5%

Pressure digital display, can maintain peak

Power supply: AC 380V, 50Hz



Construction

Constructed With Electric Hydraulic Loading Mechanism, Spring Constant Speed Loading Mechanism, Working Platform, Testing Unit, Indication Part, Control System.

 Working procedure

Firstly choose suitable clamp, place the sample on the clamp; open the oil pump motor, dial the switch to “Loading” place, then the working platform and sample will raise, when the sample contact the upper edge then will start to loading, the loading force will be indicated on the digital gauge, when the sample broken, the gauge will keep the peak value and stop loading; when switch is dial to “Unload”, will lower the working platform and clamp, when switch is dialed to middle position, will stop moving.
