Model: MJ-QD-1000

Standard: GB/T2006-2008



Brief introduction

The machine is mainly used to test the mechanical strength of coke (M40, M25, M10). Put the coke samples into the drum.

During testing, the drum will continue to rotate as required, so that the coke and the drum wall will collide with each other, and the friction will cause the coke to break along the cracks and the surface to be worn, thus to achieve the determination of the crushing strength and abrasion resistance of cokes.

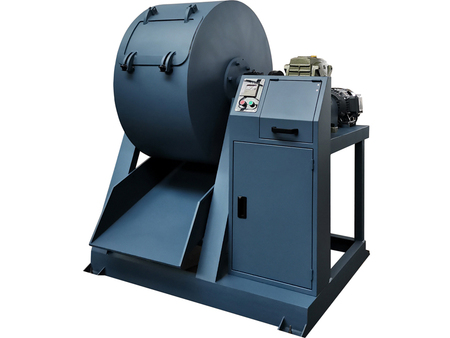

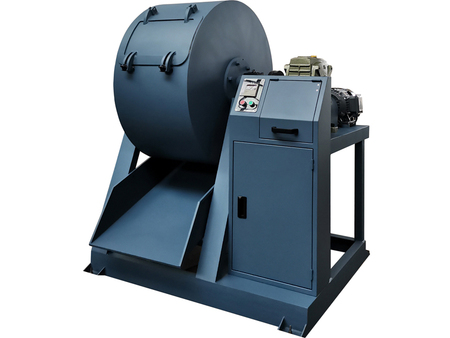

The drum is mainly composed of a frame, a drum, a reduction system, a discharge system, and a digital display and counting device. This equipment has novel design, reasonable structure, convenient maintenance and simple operation. It is the common test equipment for cokes.



Specifications

Drum size	φ1000×1000mm
Sample weight	50 kg
Preset revolutions	100 r
Drum rotation speed	25 r/min
Motor Power	2.2 kw
Operating Voltage	380VAC, 50HZ
Overall dimensions	1850x1250x1760mm
Net weight	970kg
In-front sieving machine	Sieve plate specification: 1640X705mm
	Sieve plate aperture: 80×80, 60×60, 40×40, 25x25mm
	The number of sieve plates: 4 layers
	Screen body inclination angle: 11.5°
	Exciting vibration amplitude: 6-8mm
	Motor power: 0.75kw
	Machine weight: 600kg
	Dimensions: 2300x1340x1310 mm
Rear sieving machine specifications	Sieve plate specification: 1000X700mm
	Sieve plate aperture: upper layer diameter40mm or 25 mm, lower layer diameter 10mm
	Number of sieve plates: 2 layers
	Swing angle: 40-45°
	One screening time: 45 seconds
	Motor power: 1.1kw
	Machine weight: 350kg
	Dimensions: 1540x1150x1200mm
