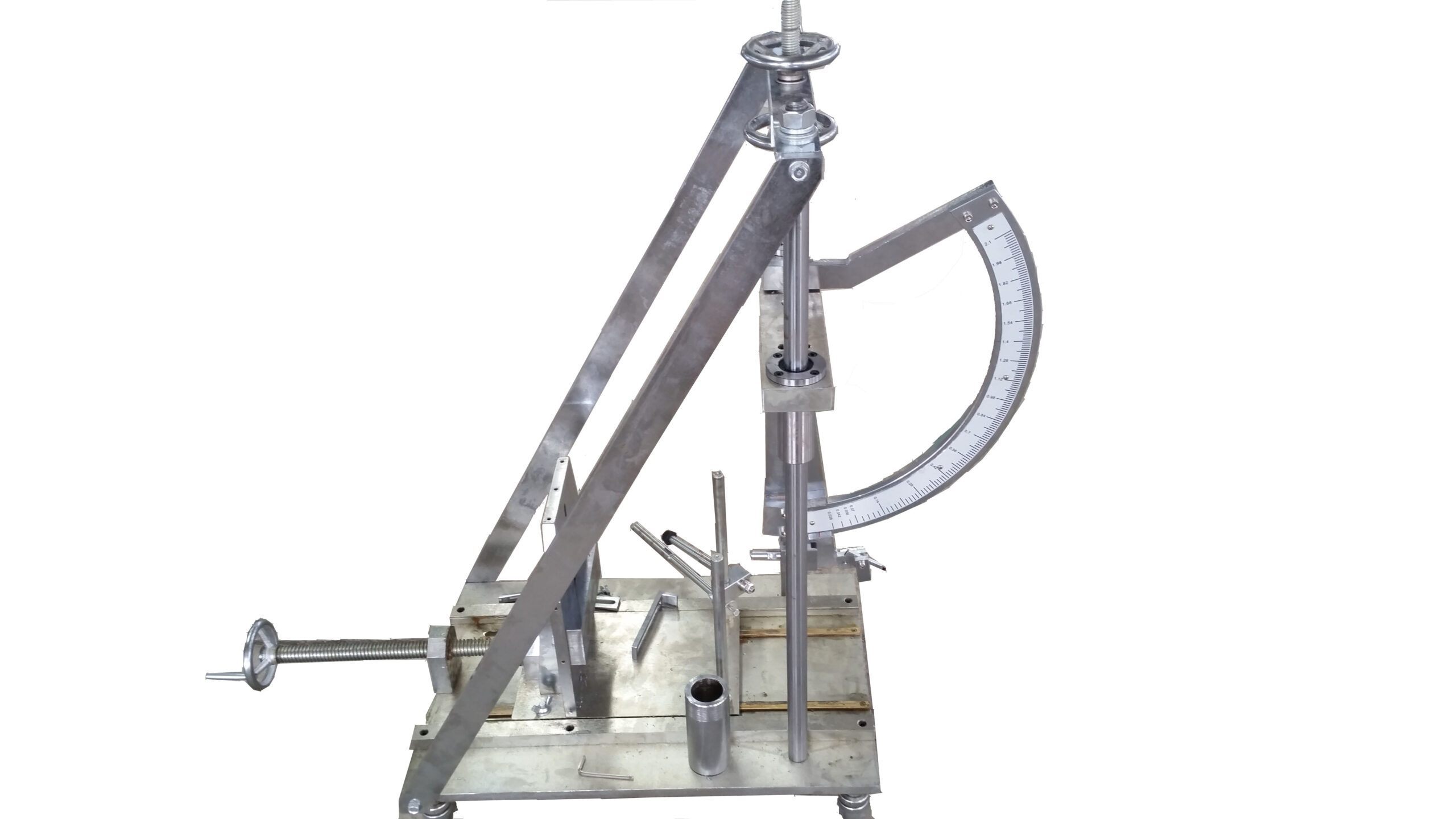

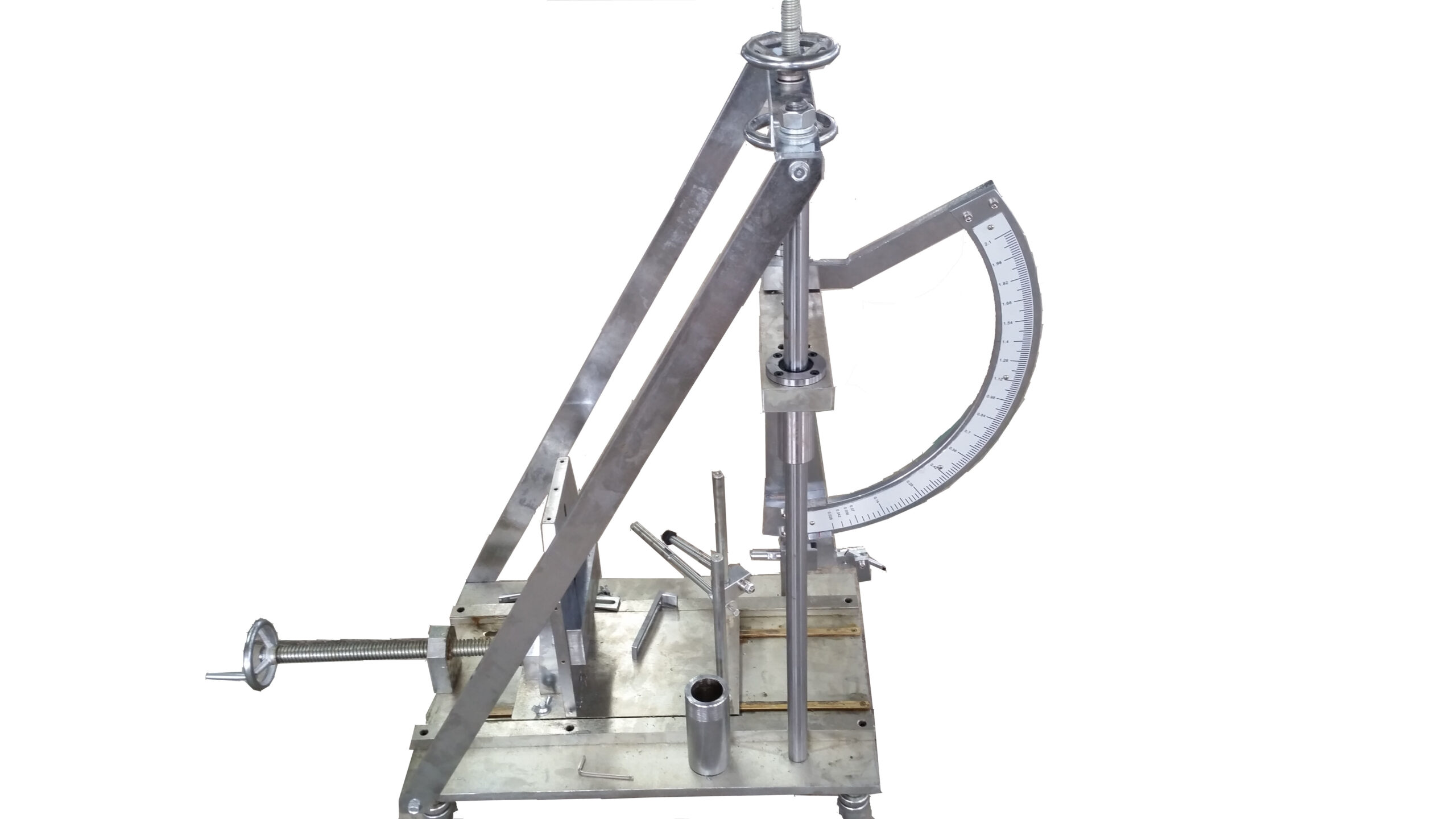

Model: TCY-2

Standards: GB/T4742, QB/T 1993-2012, ASTM C 368

It is used for the impact test on the center of flatware and concave utensils, as well as the impact test on the edges of concave utensils. The sample can be glazed or unglazed. The impact test on the test center is used to measure: 1. The energy of one blow to produce the initial crack. 2. The energy required for complete crushing.



Specifications

Max impact power: 2.1J

Min readout: 0.014J

Pendulum lift angle :120℃

Pendulum axis center to impact point distance:300mm

Working platform max lift space:120mm

Platform max horizontal move space:210mm

Sample size: 6inch to 10 1/2 inch flat plate, height<10cm, bowl & cup with opening >8cm

Machine net weight:95㎏;

Overall size:750×400×1000mm;



Test mode

1. Impact test on the edge of a concave vessel: Start with an impact of 0.027J, with an energy increase of 0.014J,
2. Breaking test on the edge of flatware: ①Start with 0.136J impact, then increase with 0.027J capacity ②. Start with 0.027J impact, increase with 0.014J energy,
3. Impact test of flatware (knife, fork, spoon, etc.): start with 0.027J impact, increase with 0.014J energy until the sample breaks for the first time, and then increase with 0.028j until the test fails.
