Civil engineering & Material Testing equipments

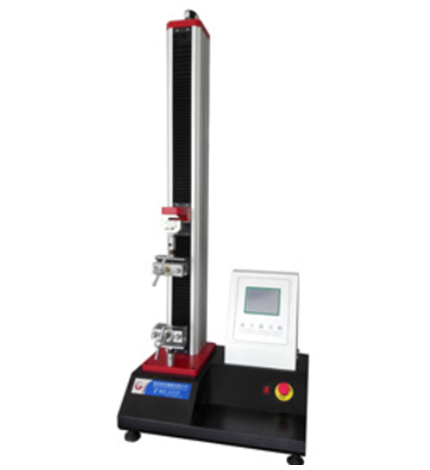

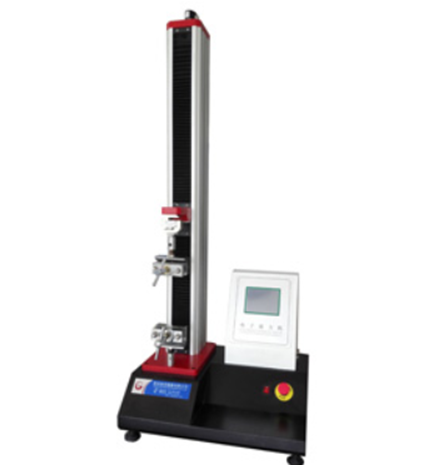

Break strength and elongation tester ASTM D5035

Model: FZ-026

Standards: ASTM D5035 ASTM D5034, DIN53868; NFG07-001

This machine is used for break strength and elongation testing of textiles and fabrics.



Technical specifications

  1. Structure: single arm type (including computer interface)
  2. Measuring force range: 2500N or 5000N
  3. Effective stroke: 1000mm (without fixture)
  4. Load measurement range: 1%-100%
  5. Load measurement accuracy: +0.02% F·S
  6. Stretching speed: 0.1-1000mm/min digital speed regulation, deviation ≤±2%
  7. Speed accuracy: ±0.1%
  8. Dimensions (mm): 500×600×1450
  9. Fixture configuration: a set of tensile fixtures (other functional fixtures can be customized according to user test requirements)
  10. Power supply: single-phase AC 220V±10%V
  11. Net Weight: 90kg
