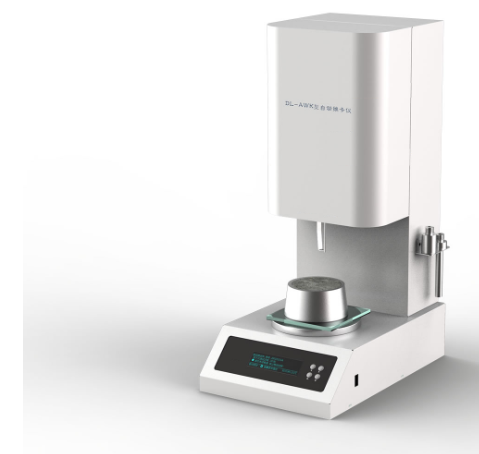

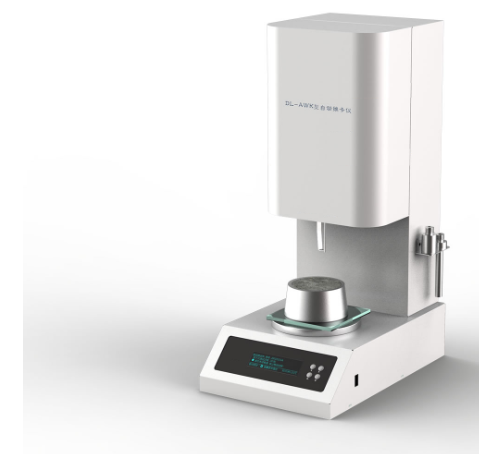

Model: WKY-1A

Standard: GB/T 1346-2011

It is an automatic instrument used to test the standard consistency and setting time of cement.

Features

Automatic measurement of consistency and setting time

Automatic generation of the “sink depth against age” process curve

Unattended measurement process, autommatic-recovery of test after power supply recovery

Accurately control the settling time, sink depth deviation <0.1mm

Latest data acquisition technology, high stability, durability, reliability

Under single term test mode, directly display sink depth and age, no need human recording;

Under “setting time automatic measure” mode, only need to input the water feed time, can automatically calculate the initial setting, final setting time, less labor work for operators;

Under “setting time automatic measure” mode, can directly check the curve of sink depth, easier for setting time judgement and research work of test sample;

OLED screen, easier operation

Longer tooling life, less maintenance work

Screen lightness adjustable, when in standby, automatic enter energy-saving status

Softwar automatic update

USB-HID transmission mode, no need to install drive, support USB 2.0, easier for data output;

When the sink value is for initial setting or final setting point, instrument will redo to avoid error;

Clock will record the test time of each sample, leap year automatic adjustment;



Specifications

Consistency rod effective length size: L(50±1mm)*D(10±0.05mm)

Setting rod effective size: (50±1mm)*(1.13±0.05mm)

Consistency & setting rod weight: 300±1g

Test mold size: height 40±0.2mm, inner dia. 65±0.5mm/75±0.5mm

Glass plate thickness: 4.5±0.2mm

Power supply: AC 220V, 50HZ, 150W

Storage capacity: 8M, 999pcs

Work conditions.: 5 -40℃, <=95%RH

Net weight: 10kg
