Civil engineering & Material Testing equipments

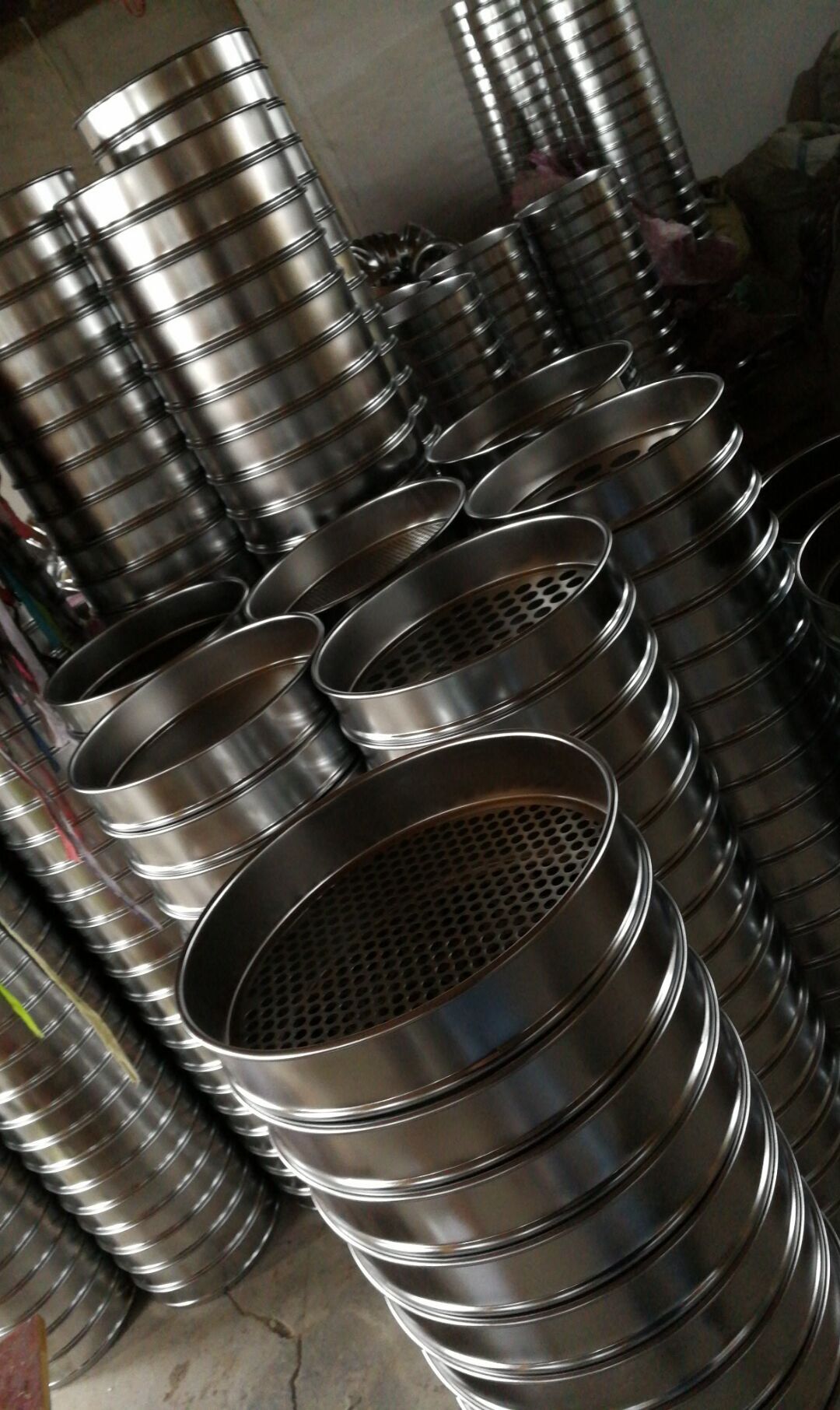

Aggregate test sieve, soil test sieve



This test sieve is used for aggregate screen test. it’s kind of common aggregate test equipment.

Description

Frame: 200mm (8 inch)dia.×50mm height,  300mm (12inch)dia.×60mm height.

1. Finest quality mesh;

2. Double layer welded frame;

3. Epoxy fillet technique is adopted recently to ensure smooth and uninterrupted flow of material through sieving medium.;

4. Aperture size: perforated plate for aperture size bigger than 1.18mm Woven mesh for aperture size smaller than 1.18mm

5. Frame thickness: double layer, 0.5mm/layer.

Sand Sieve 300mm (12inch)dia.×60mm height.



Aperture:

0.075mm, 0.15mm, 0.6mm, 1.18mm, 2.6mm, 4.75mm, 9.5mm

Stone Sieve Specification:2.36mm, 4.75mm, 9.5mm, 13.2mm, 16mm, 19mm, 26.5mm, 31.5mm, 37.5mm, 53mm, 63mm, 75mm, 90mm
