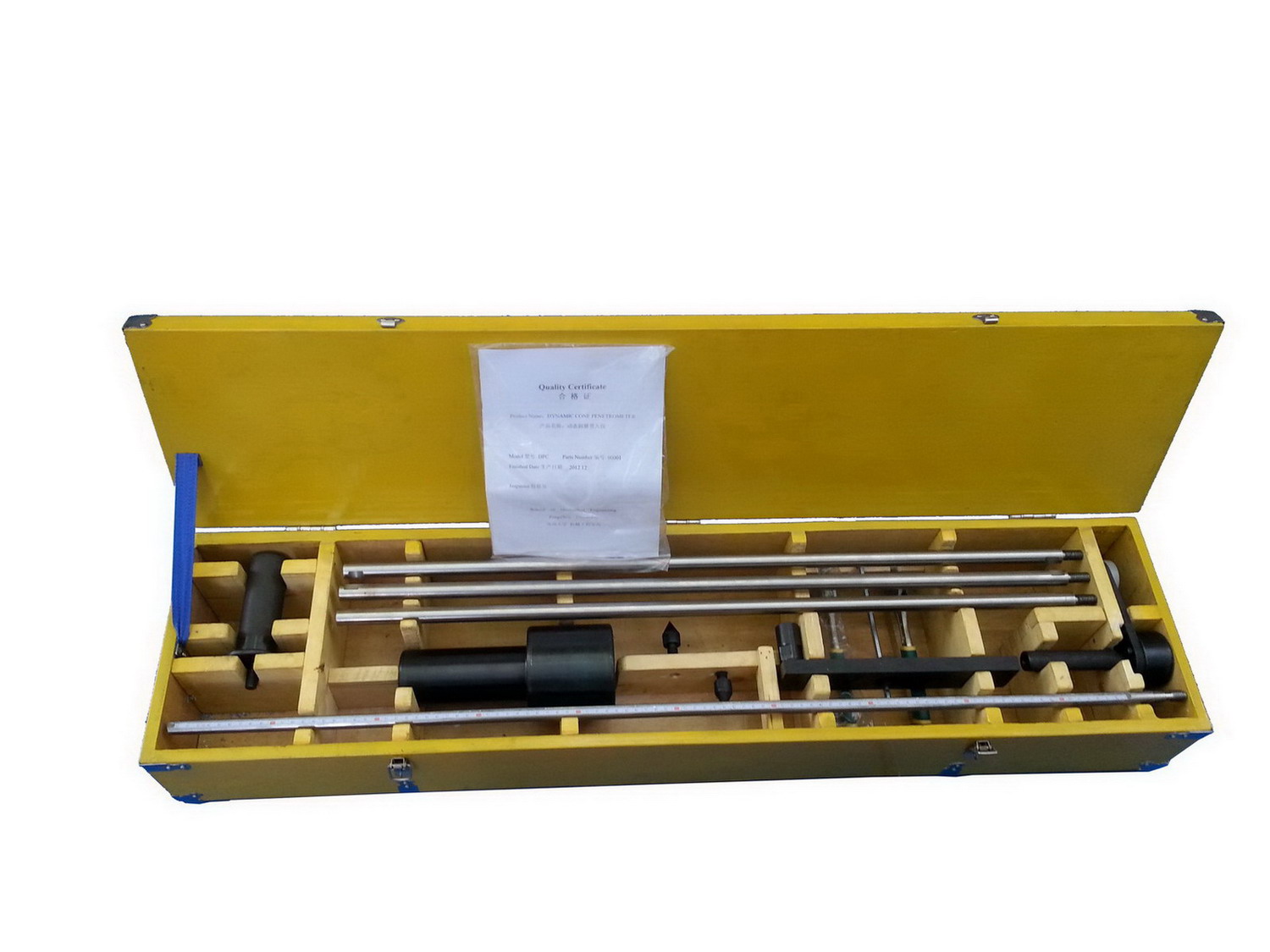

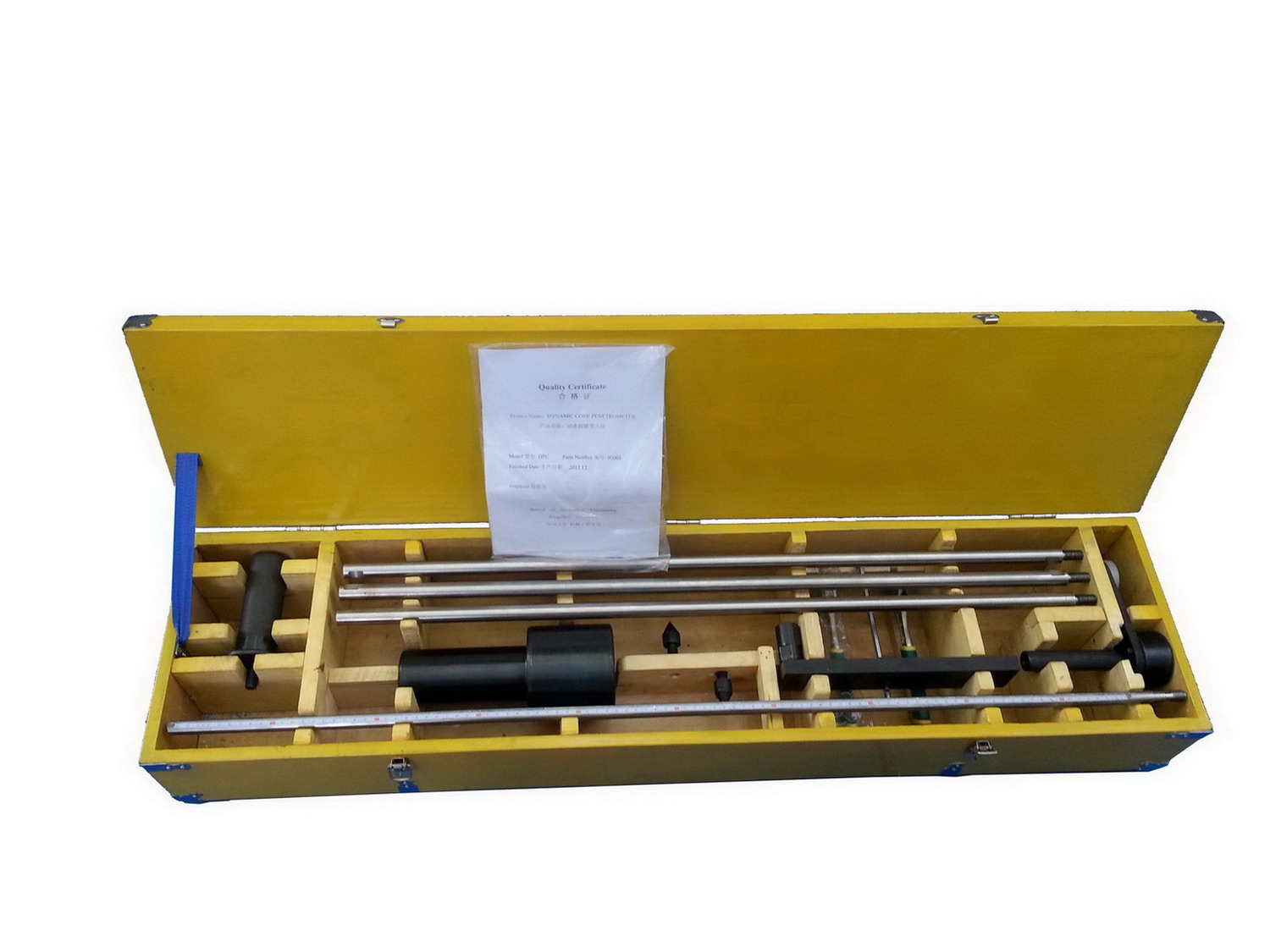

Model: DCP-TRL

Standards: ASTM D6591

The DCP Dynamic Cone Penetration test has good relations with CBR and resilience modulus, thus can be used to evaluate the roadbase strength. Features quick, easy to operate, no limited to filed conditions. The DCP is developed by the TRL As per AASHTO standards, the DCP has below relations with CBR: CBR=405.3/PR1.259

Wherein the PR is the penetration rate(mm/strike times), CBR, %.

Technical specifications

Scale length: 1000mm

Penetration rod upper rod: 803mm

Connecting plate dia.: 105mm

Drop distance: 575±1mm

Penetration rod lower trod: 910mm

Baseplate size: 300mm×60mm×8mm

Drop hammer weight: 8±0.1 Kg(17.6-lb)

Dynamic cone: dia. 20±0.25mm, cone angle 60°±1°degree

Penetration rod effective length: 1000mm, mm and inch two scalemark
